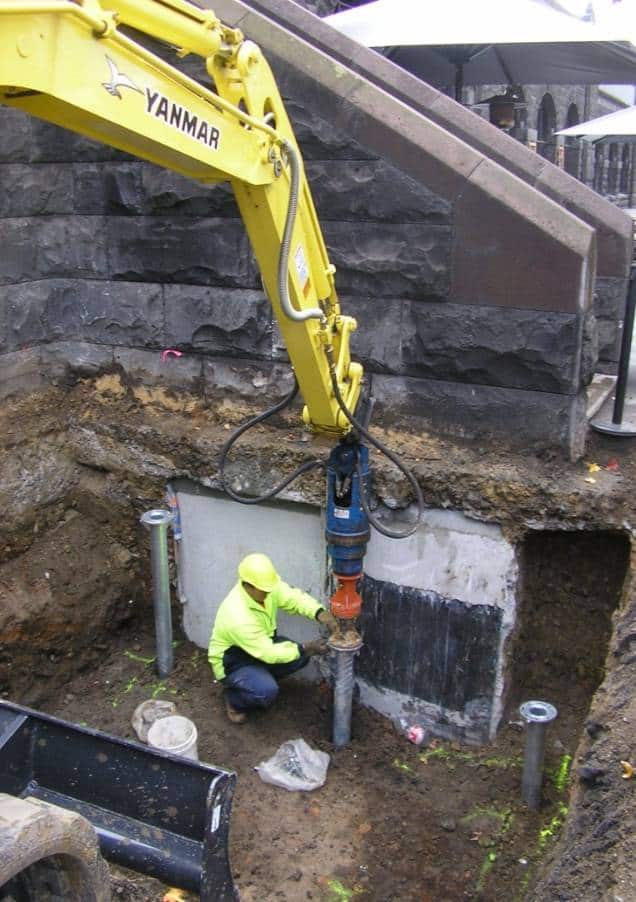

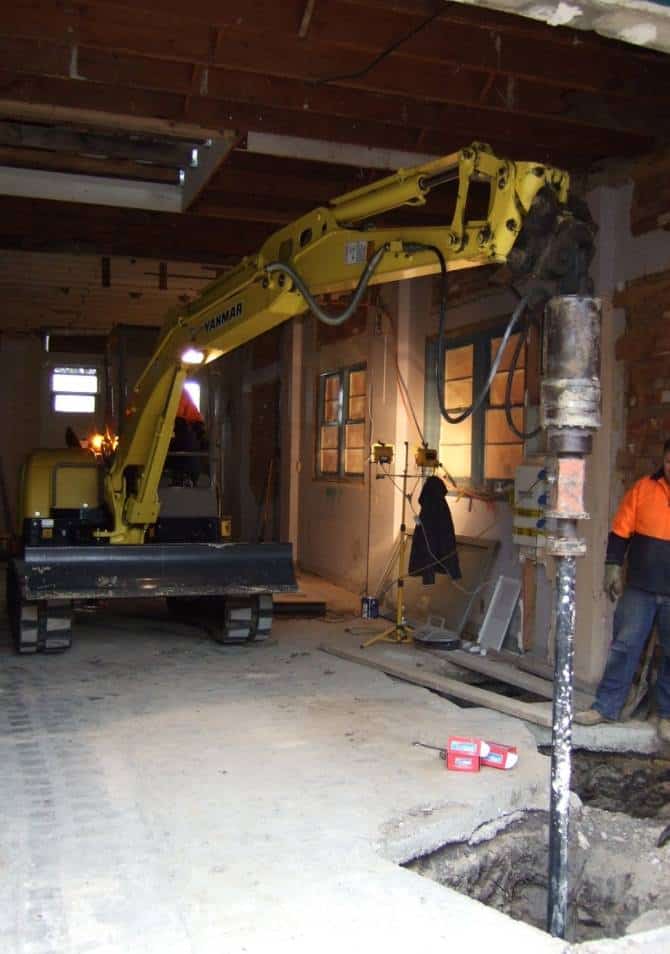

Problem -Limited Access

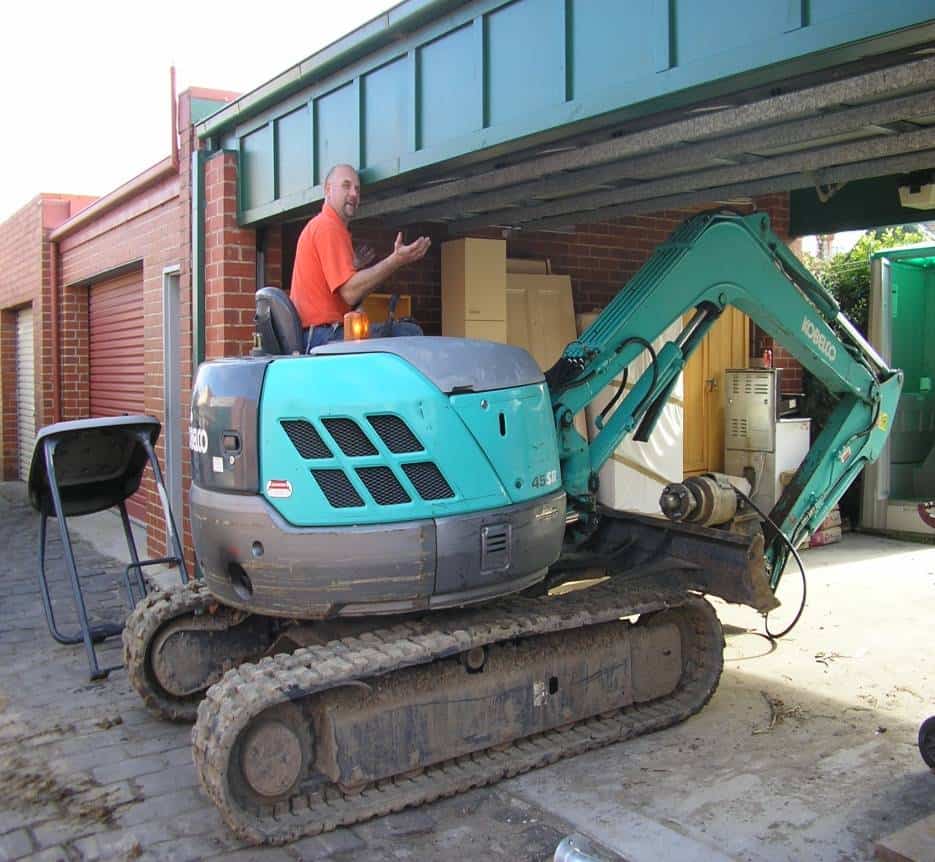

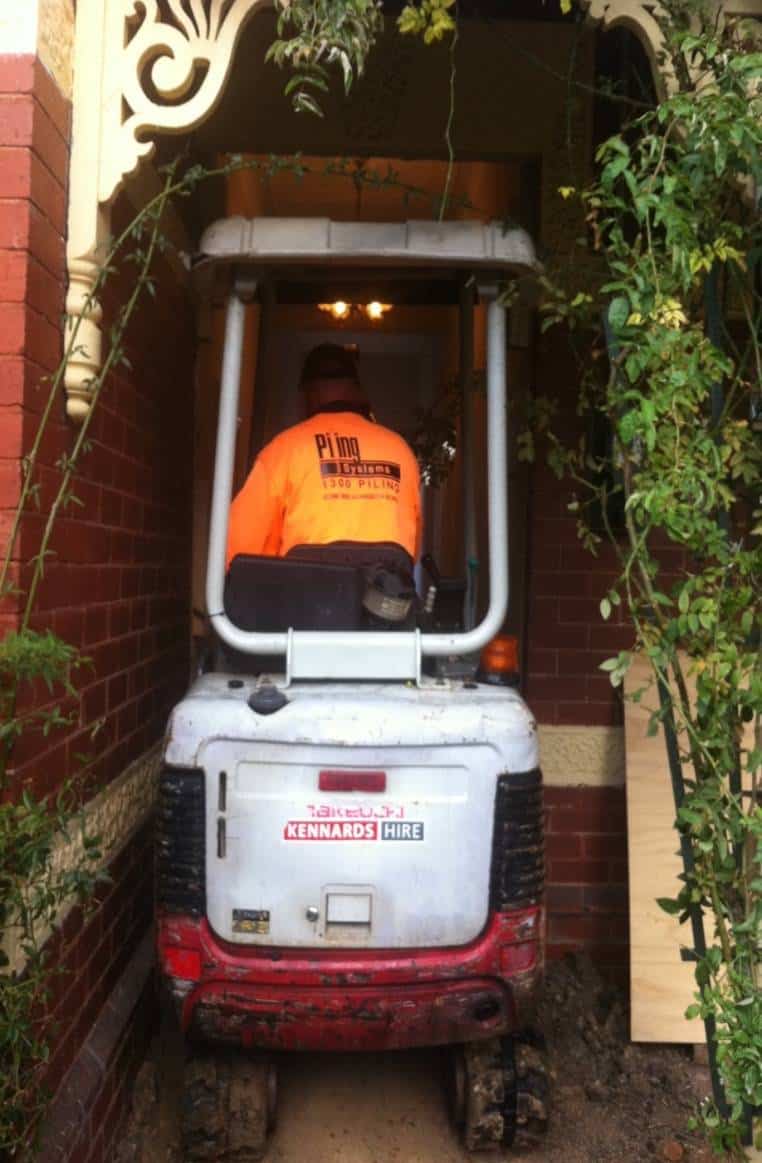

Both height and width access issues addressed with appropriate equipment and short pile segments
1300 745 464

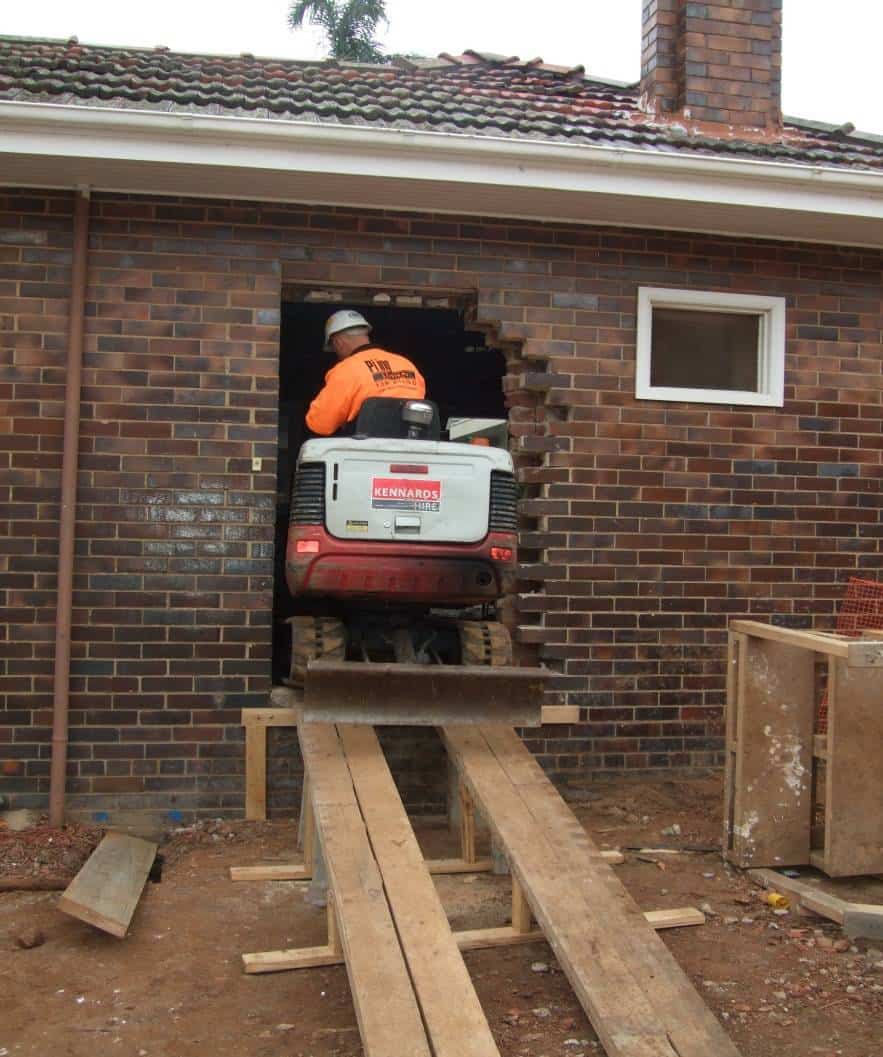

Both height and width access issues addressed with appropriate equipment and short pilesegments
1300 745 464

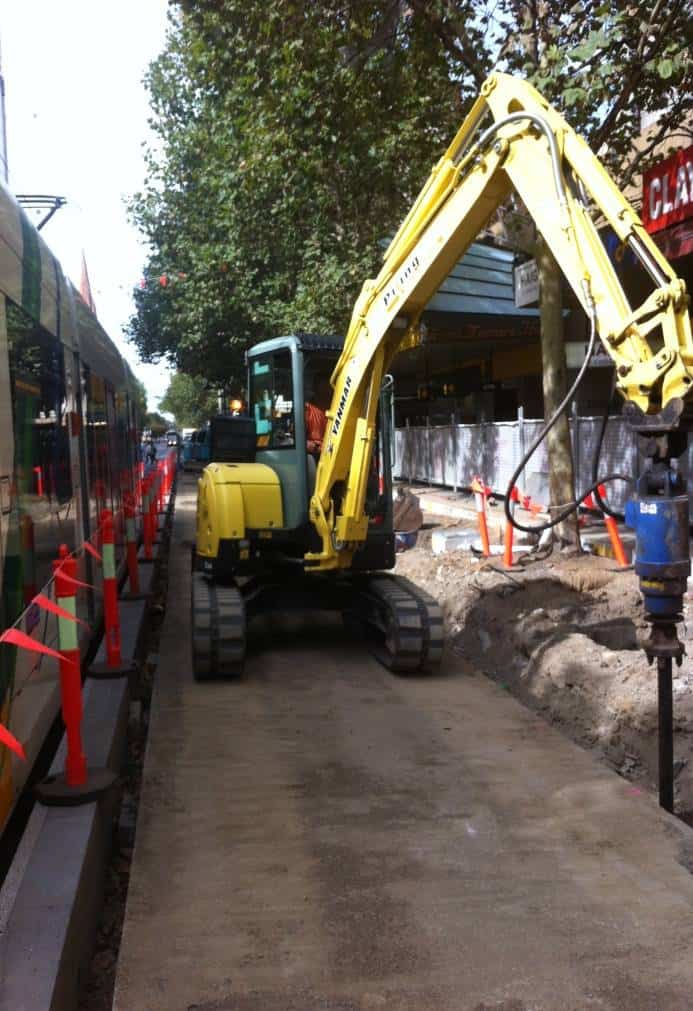

Problems : Limited Access – Contaminated Soils
1300 745 464
Solution – Small machine , 6 metres of segmented screw piles to bedrock . Contaminated material $15K to remove .

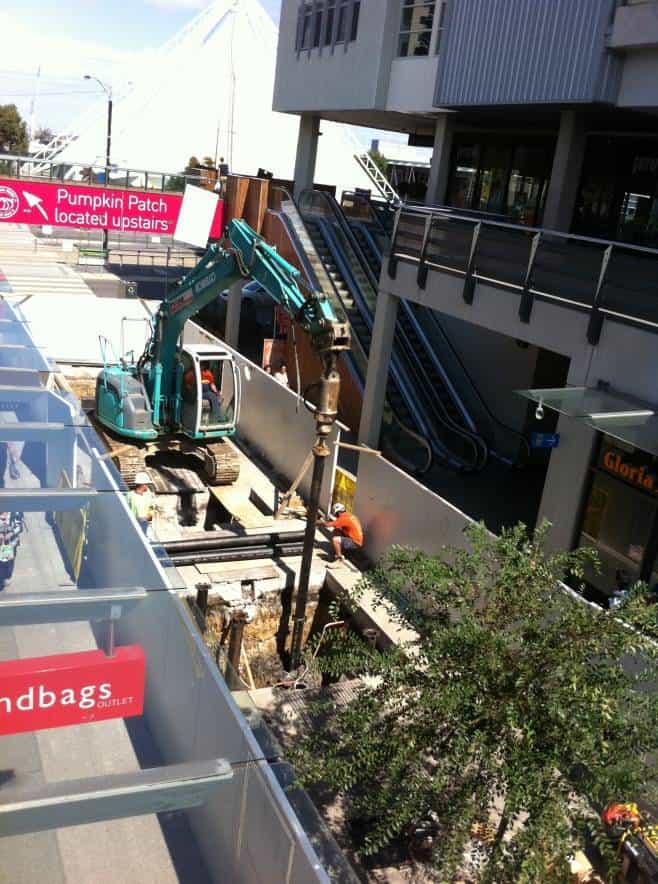

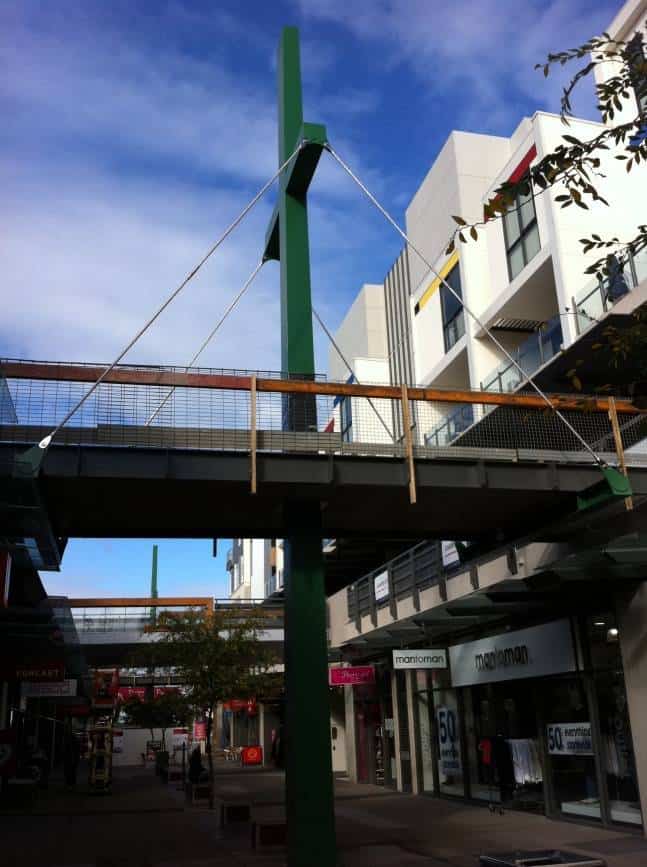

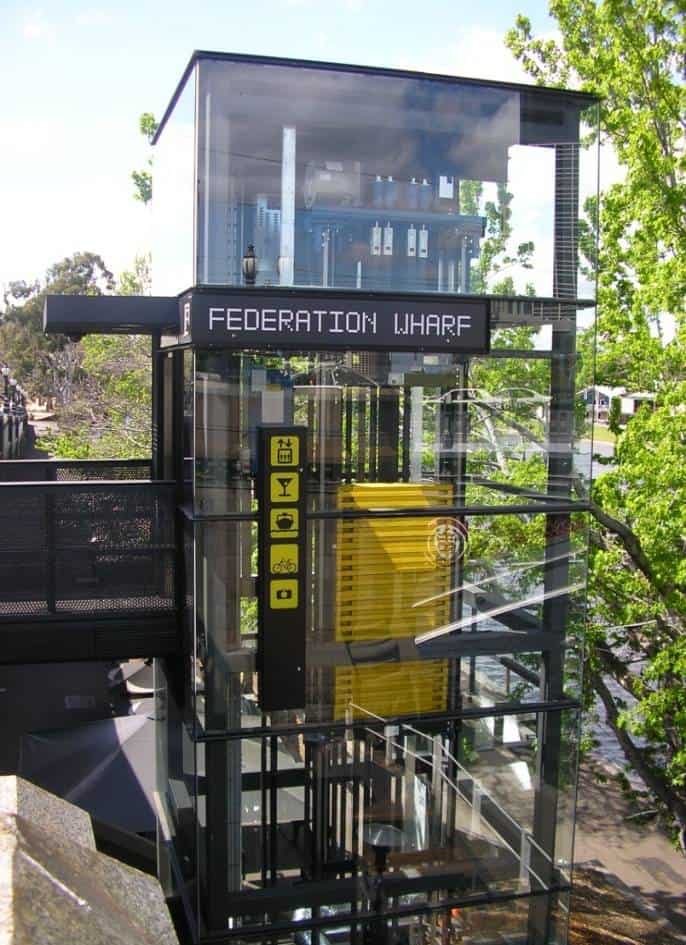

Escalator and Suspended Walkway Additions

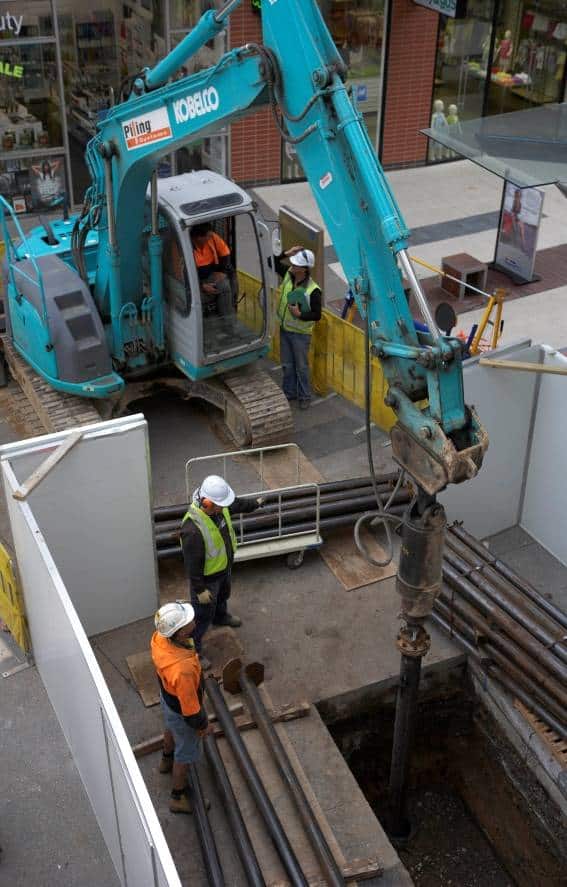

Problem – Very limited access, Shopping Complex open all hours, Contaminated Fill, 30 metre long Piles
Solution – Small Excavator ,Segmented screw piles in 3 metre sections to bedrock.

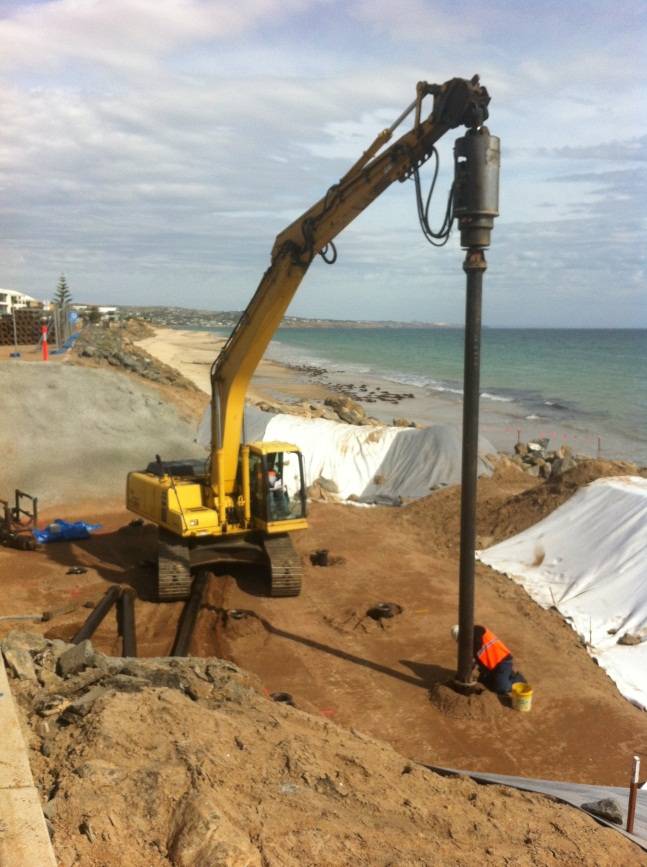

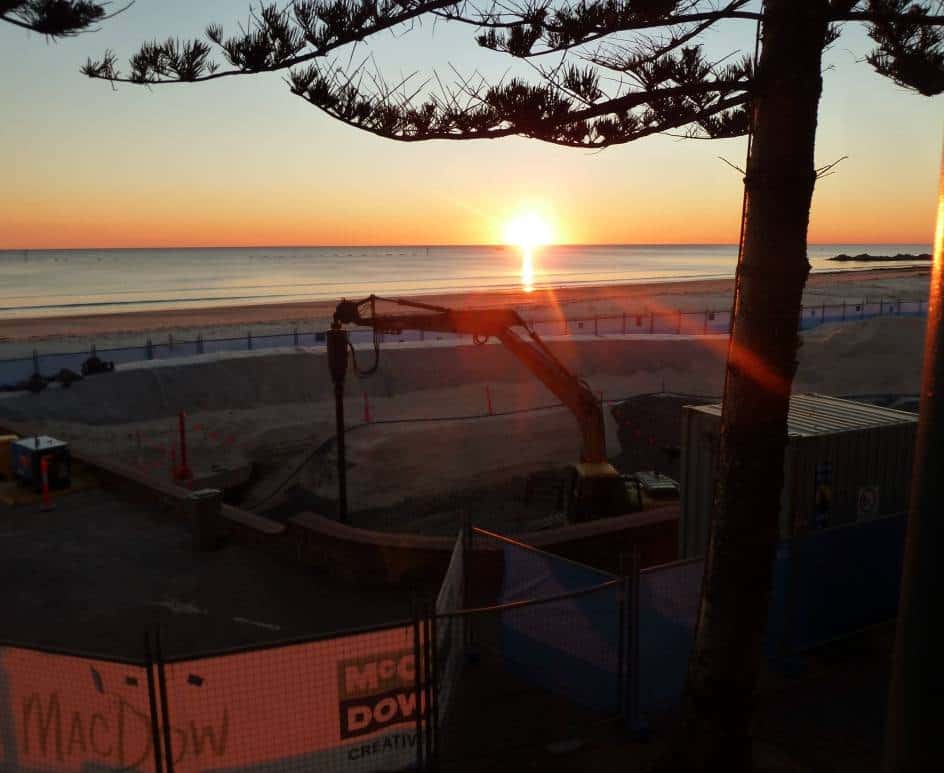

Problem- Shallow water table, collapsing sands , corrosion , lateral
Solution – Large diameter heavy gauge screw piles , founding on dense sands at depth.
1300 745 464

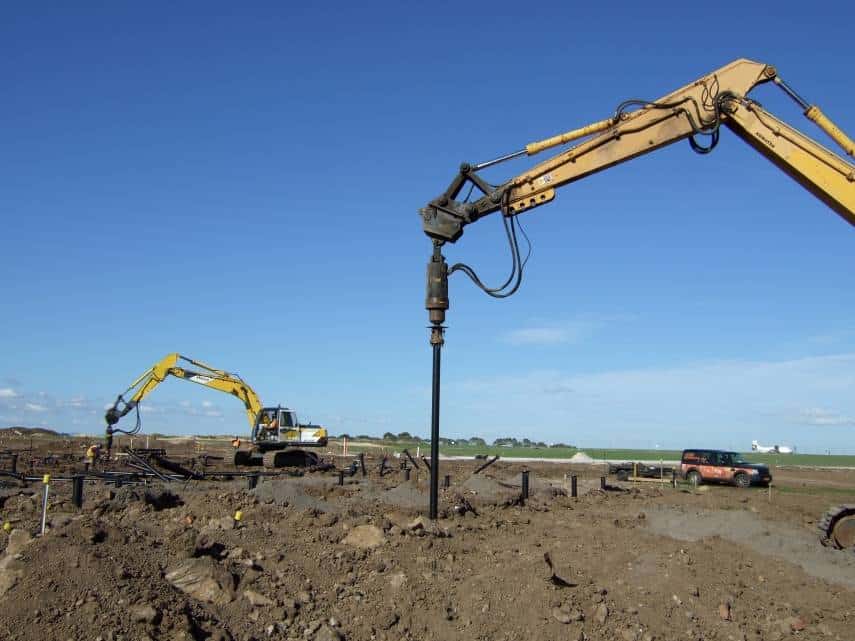

Design Problems: up to 6 metres of contaminated fill , including building rubble – 800 piles in total

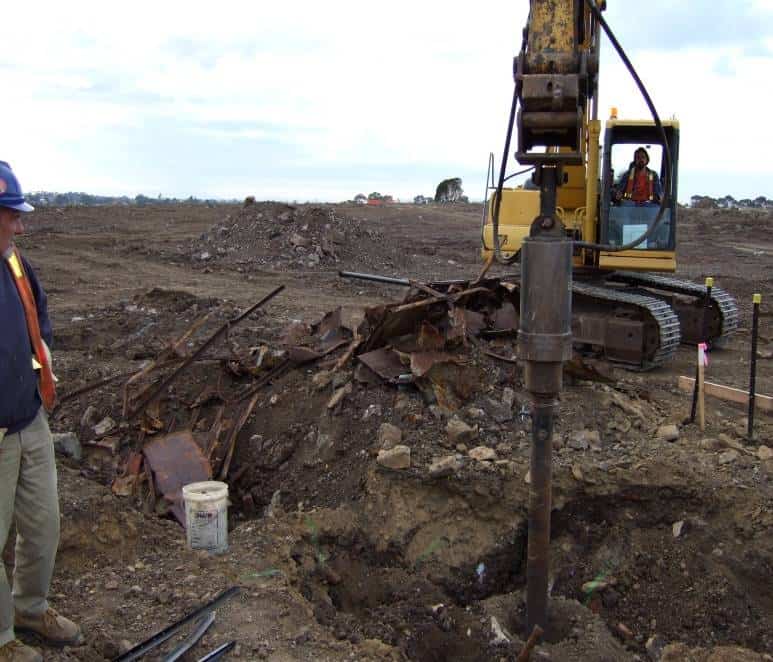

Problem – Contaminated Fill from 80 year old Tip Site , lateral loads imposed on structure
1300 745 464

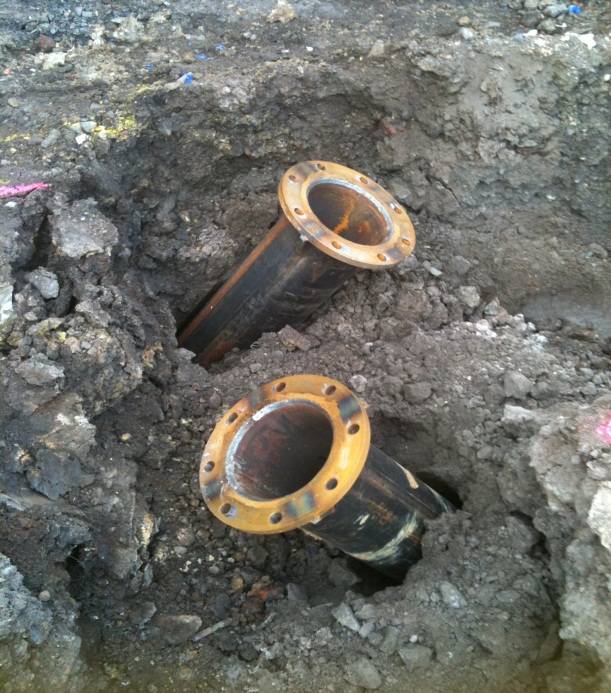

Solution – Large Capacity Segmented raking screw piles in 6 metre sections to bedrock tied to band beams.

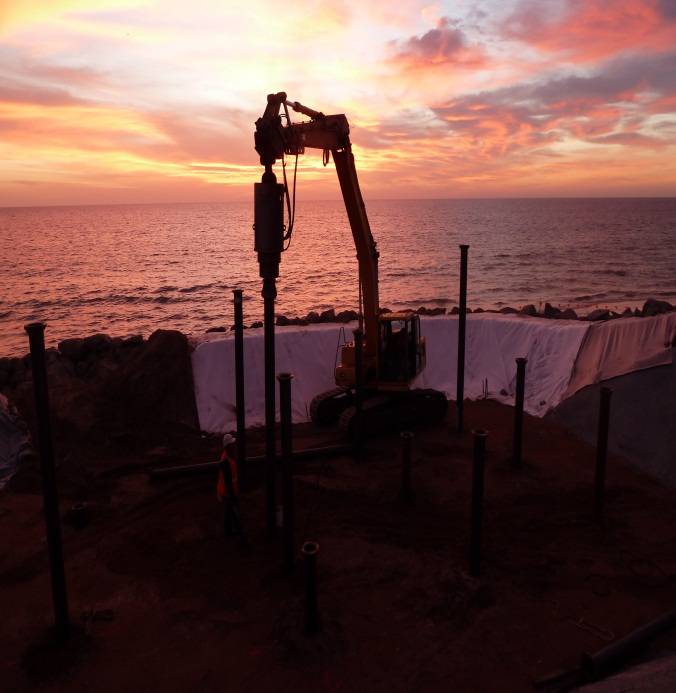

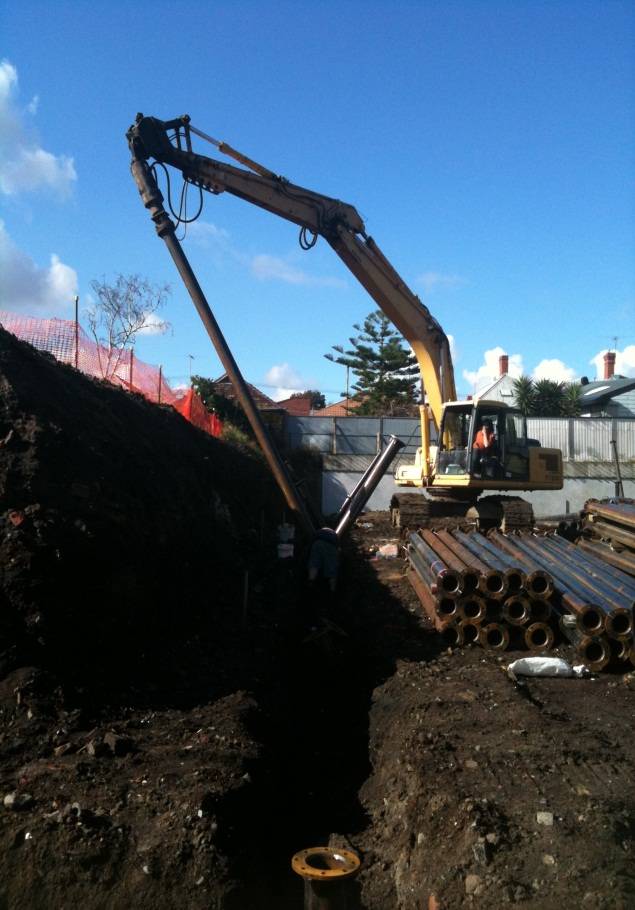

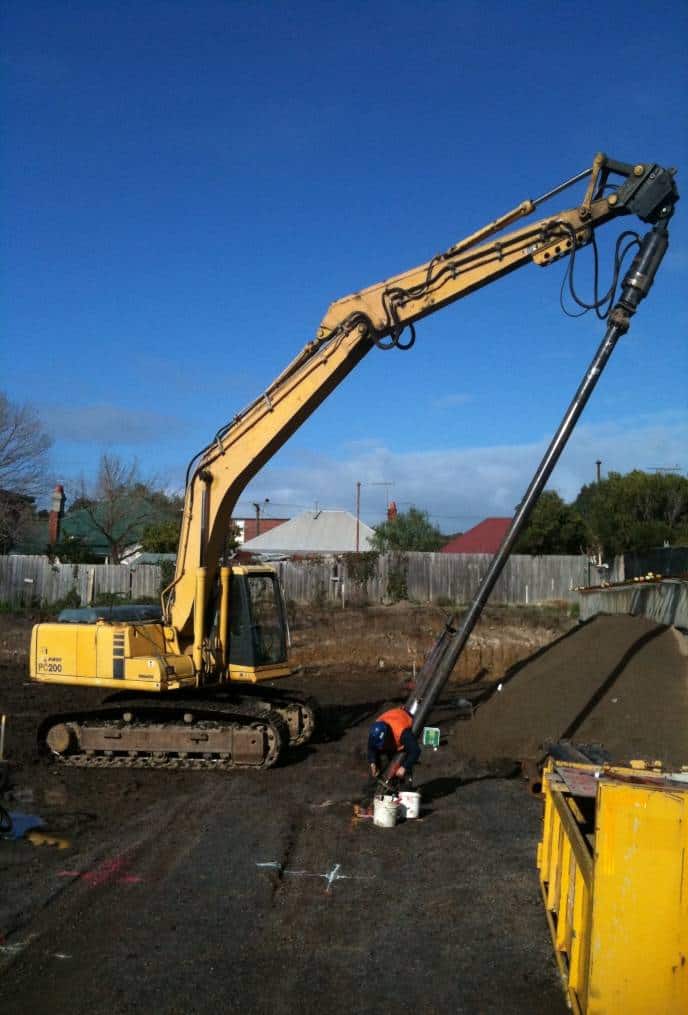

Problem – Significant Lateral Loads ( Wind ) , Shallow water table and collapsing soils

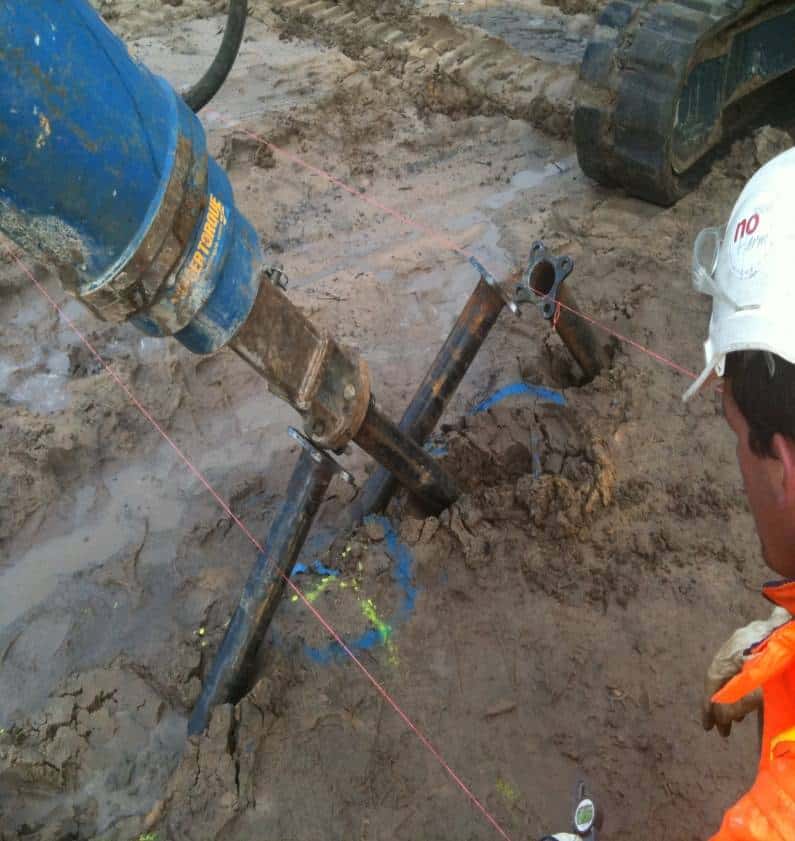

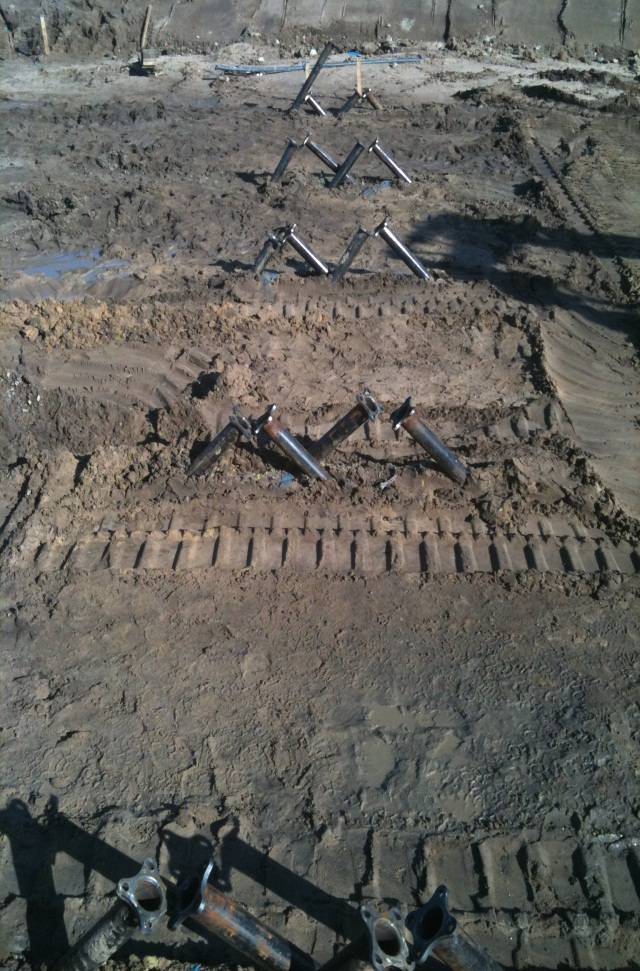

Solution – raking screw piles in 3 metre sections with pile cap
Problem – Collapsing Soils , High Water Table , Narrow and variable band of founding strata for high line loads

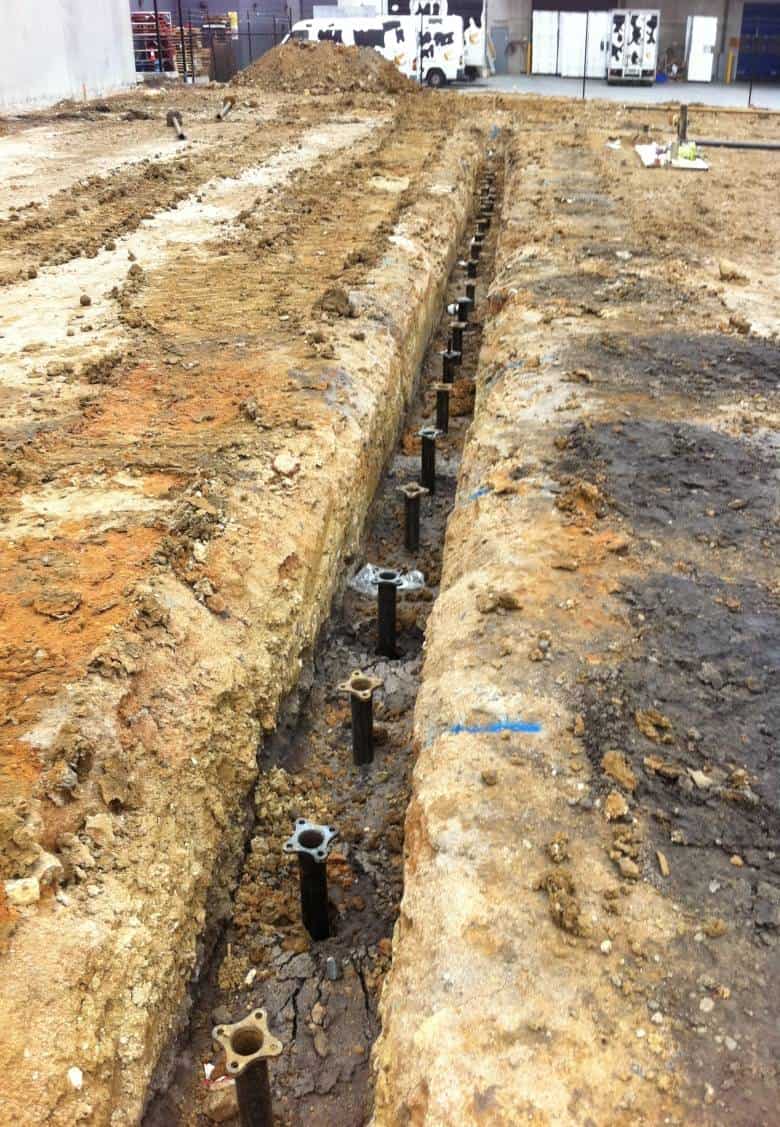

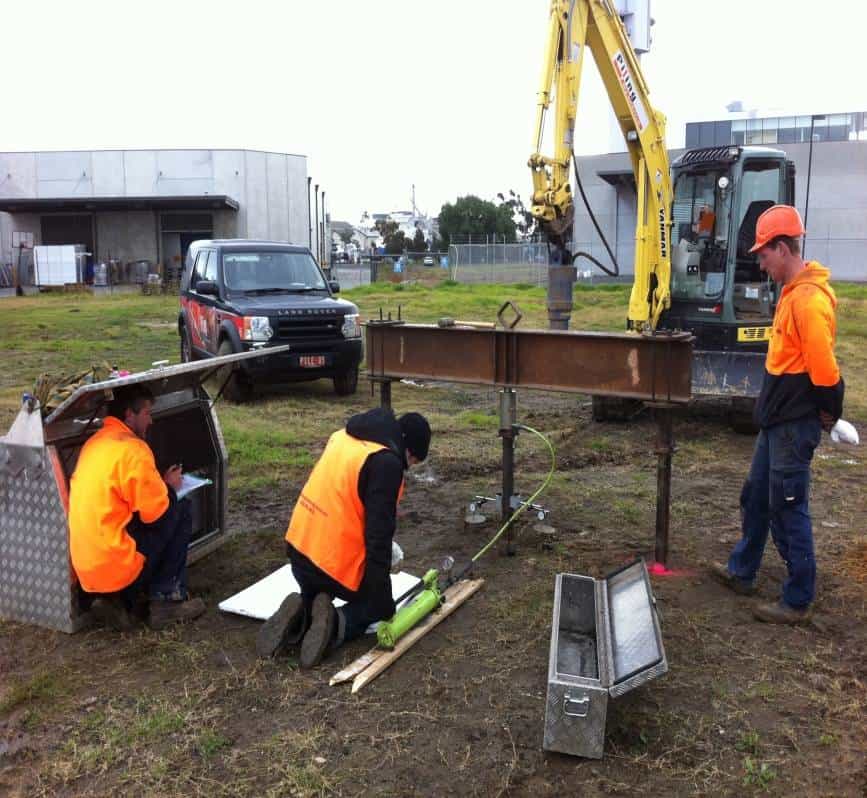

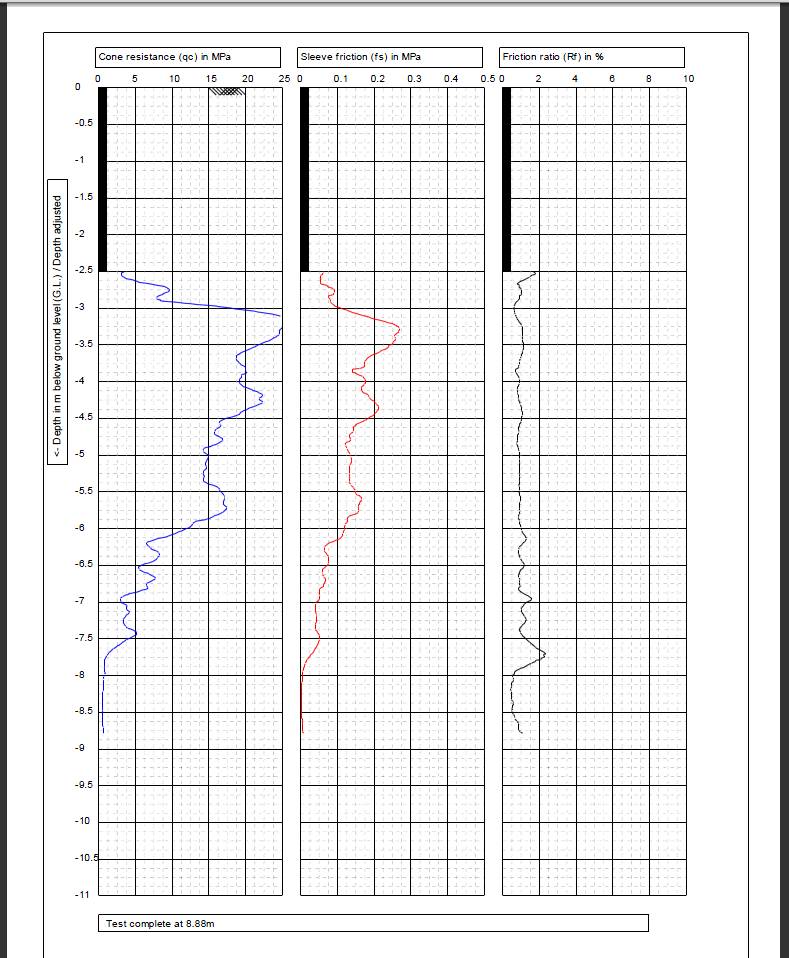

Solution – Extensive Static load testing of piles with CPT logs used for design. Closely spaced screw piles in shallow beams with twin helix design.
